Applications

• Defense & Security Systems

• Automotive Optics (Maruti Suzuki Ltd Green Rated Supplier)

• Medical Devices

• Consumer Electronics

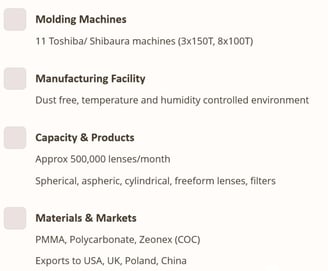

Capabilities

Materials: PMMA, Polycarbonate, Zeonex (COC)
Maximum Shot Weight : 180g Diameter: 2 mm - 150 mm.

Thickness: 0.7 mm - 35 mm.

Optical Surfaces: Spherical, Conic, Aspheric, Freeform, Cylindrical, Flats, Toroidal surfaces.

Shapes: Optical surfaces with integral molded features (frames, pegs, notches, spacers).

Capabilities & Applications of Plastic Optics

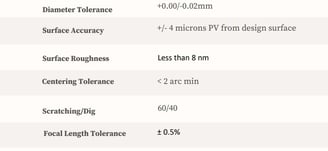

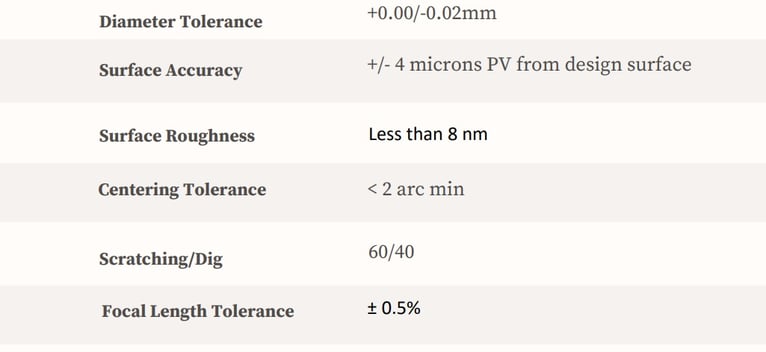

Injection Molding Tolerances

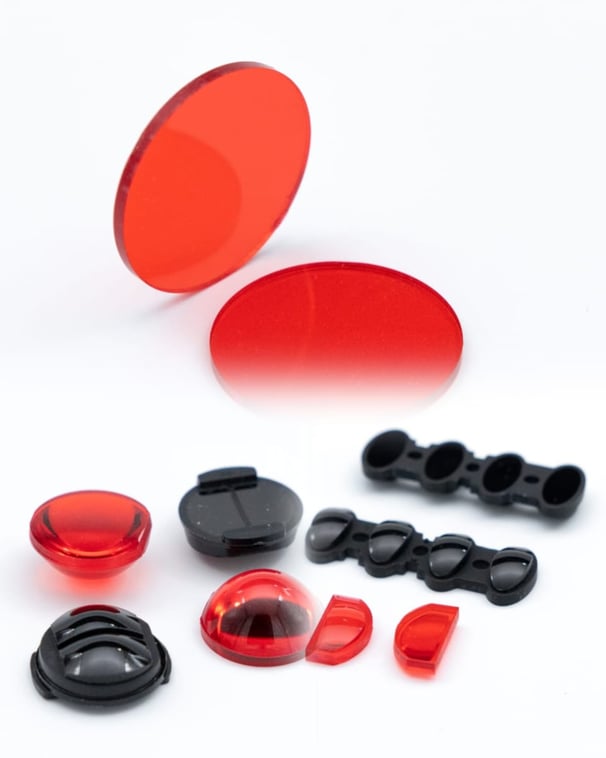

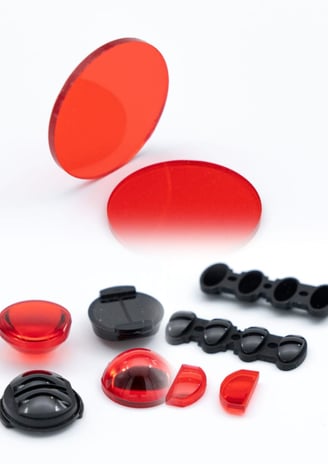

Colored Filters & IR Optics

We mold optics in various colours including red, blue, and IR plastics. These are used in critical applications like security systems.

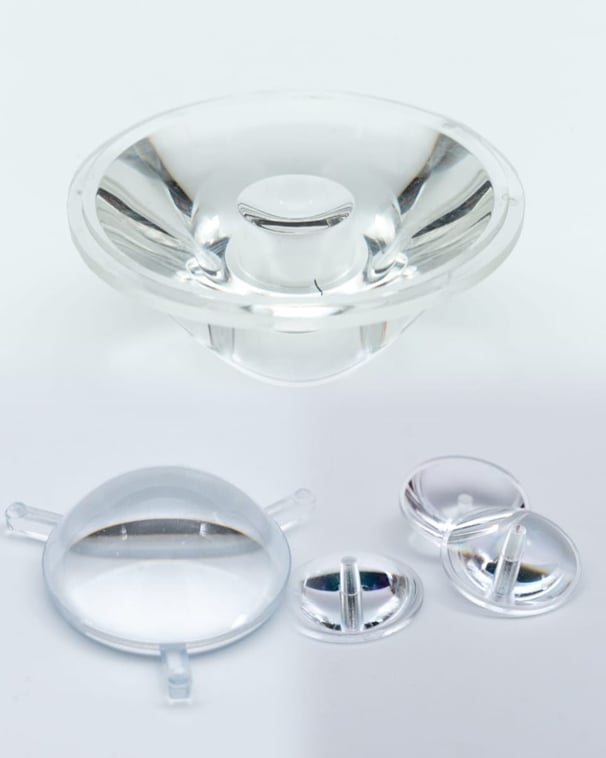

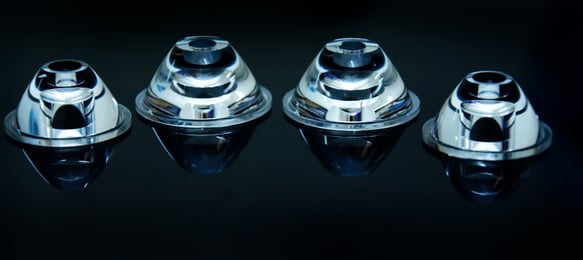

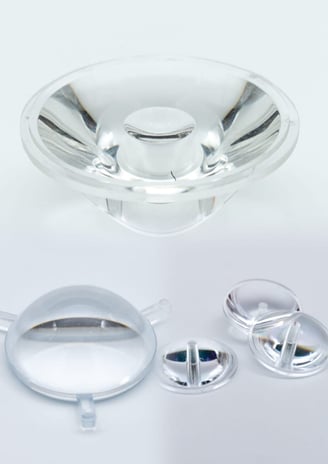

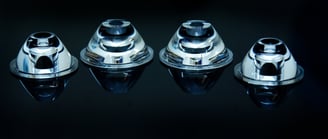

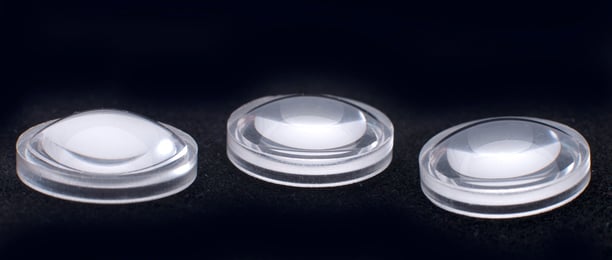

Aspheric Imaging & TIR Lenses

These lenses feature deep aspheric surfaces with higher order coefficients. They are critical for highprecision imaging applications. TIR Lenses are used in LED Optics.

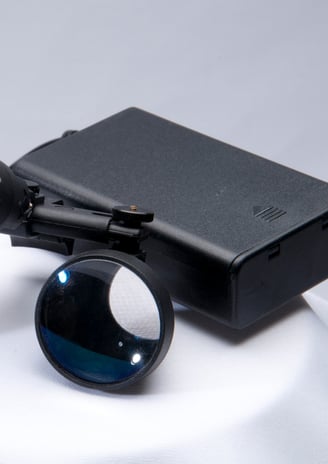

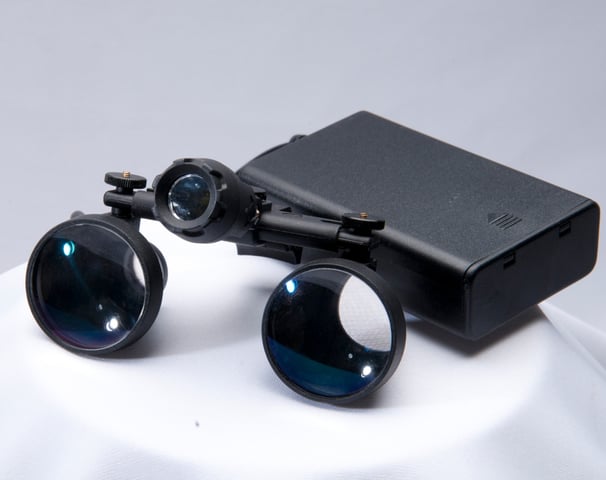

Galilean Telescope with Light

This fully plastic system includes BBAR coated achromatic doublets. Over 25,000 units have been sold since 2009.

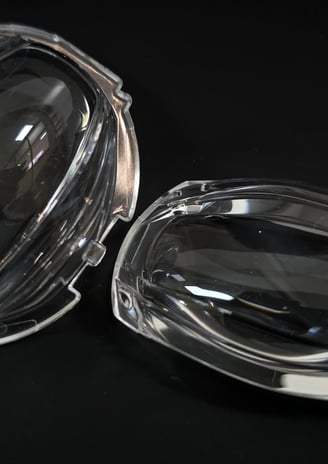

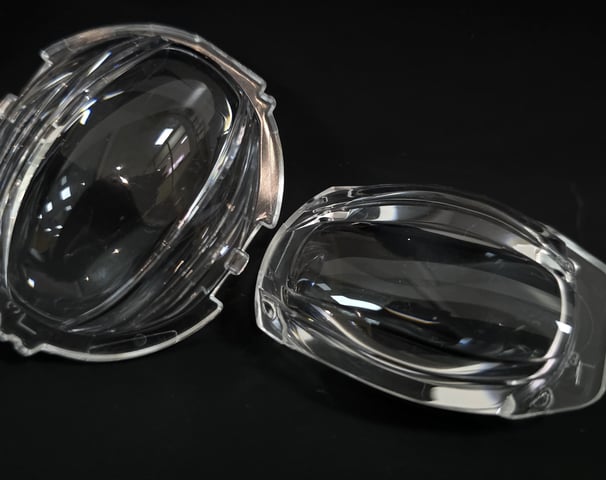

Automotive Fog Lamp Lenses

We supply multi-faceted, aspheric PMMA lenses for automotive fog lamps. Lensel is a Green Rated Supplier for Maruti-Suzuki India Limited
